 Welded Gabions and Mattresses

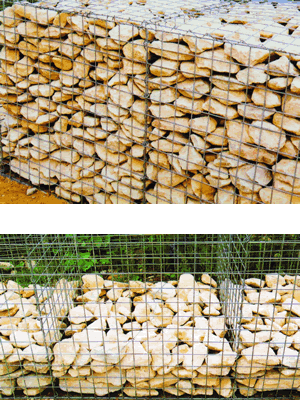

Welded mesh Gabions are supplied in flat-pack form and include cable ties and lacing wire for ease of assembly on site.

Flat pack shown opened for assembly.



Standard sizes (all dimensions are nominal):
Other sizes made to order
L x W x D (m)
Diaphragms
Capacity cu m
Nominal mesh size mm
3 x 1 x 1
2
3
 Triple life/ Galvanized
2 x 1 x 1
1
2
 76.2 x 76.2 x 5mm
1 x 1 x 1
0
1
 76.2 x 76.2 x 4mm
3 x 1 x 0.5
2
1.5
 76.2 x 76.2 x 3mm
2 x 1 x 0.5
1
1
 Plastic coated
1 x 1 x 0.5
0
0.5
 76.2 x 76.2 x 2.7/3.2mm
6 x 2 x 0.3
5
3.6

6 x 2 x 0.225
5
2.7
 N.B. 76.2mm = 3"



Coatings: -
Triple life; Zinc 95%, Aluminium 5%, by the Galfan Process.
Galvanized to ISO 1461 (BS729).
Galvanized to BS443 & plastic coated green (fusion bonded coating).

Weight of filling materials
Material
Average Kg/cu.m
Basalt
1650
Brick
1240
Broken Concrete
1340
Granite
1600
Limestone
1440
Sandstone
1390
Shingle
1500
Slag
1500
